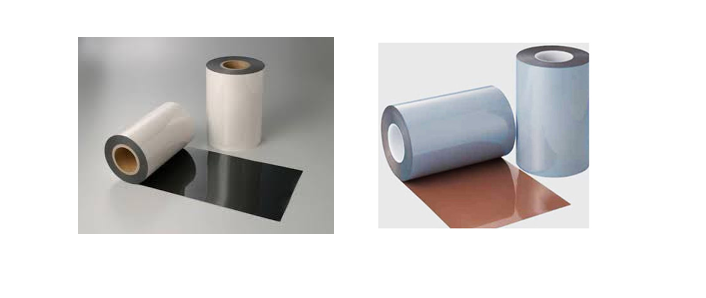

    Electromagnetic shielding film is also called EMI protective film, or absorbing material. After the punching process, it is pressed on the non-adhesive copper clad laminate or cover film to reduce or eliminate electromagnetic interference on the internal circuit. This material is widely used in the flexible circuit board (FPC) industry.

    The hot-pressed shielding film can meet the integrity requirements of high-frequency signal transmission and effectively shield the interference of electromagnetic waves. The product has the characteristics of excellent flexibility, extremely low insertion loss, extremely high shielding effectiveness and stable impedance control. Specially used in FPC flexible circuit boards and rigid-flex boards.



    Features

    Prevent the intrusion of external interference, and prevent interference from the inside to the outside

    Excellent electromagnetic shielding performance (65dB)

    Excellent high temperature resistance 300℃

    Bending resistance performance (8000-12500 times)

    Electromagnetic shielding film meets the requirements of lightweight, high shielding performance, and wide shielding frequency band

    Shield characteristic

    Using high shielding performance (low surface resistance value) and film characteristics (punching processability, flexibility, stretch and toughness), it is used for space-saving mobile equipment, cable insulation materials that require curved surface processing, etc. , Electromagnetic wave shielding of various digital equipment.



    Product Applications

    Shield the electromagnetic interference outside the FPC flexible circuit board/flex-hard combined board.

    High-signal transmission components such as touch panels, LCM modules, high-definition cameras, battery components, and mobile phone antennas.

    Used to improve the antenna sensitivity of mobile phones; used to prevent radiated electromagnetic waves from HDD.

    Used for shielding and sealing; used for very fine line coaxial cable.

    Used for flat cables; used for Card Skimming countermeasures.

    Other applications such as car navigation systems, digital cameras, HD/DVD, etc.

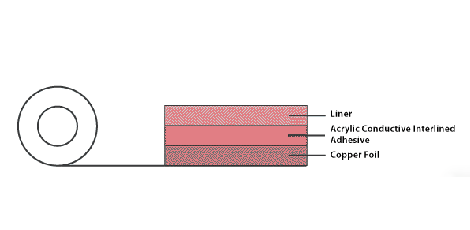

    Structure
